TICKET DISPENSER
¡@
Model¡GTD -112N (New)


Description

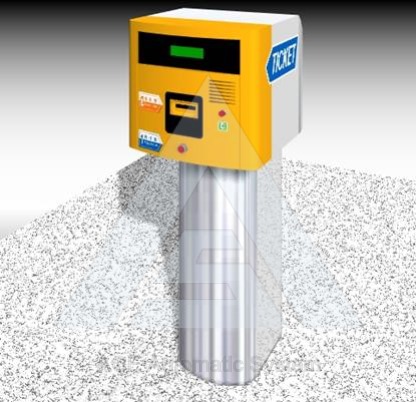

The TD-112N (Ticket Dispenser) series is a fully integrated line of magnetic type ticketing system. It is designed for automatically dispense varies types of encoded magnetic stripe hourly/monthly ticket.

Housing

The 400(W) x 530(D) x 1140(H) weather-proof housing of stainless steel sheet of 1.5mm thickness.
(Optional¡GThickness - 2mm or above).
-- Security lock on side with sliding panel.

Technology

¡EAutomatic cut-off printed ticket.
 ¡ECable control of adjustment by the Cash Register.
¡EReading speed at 2 sec.
¡EBuilt-in memory of data

Features

¡ELCD display panel for instruction.
¡EEmergency intercom button.
¡ESingle slot for Hourly ticket / Monthly Card dispensing
¡EPrinting of ticket no. & validation of ticket /card.
¡EStorage of 3500 tickets.
¡ELow ticket storage alert.
Technical Data
Power consumption: 100W
 Weight: 60 Kg.
Voltage: AC 200V Frequency: 50-60 Hz
R.H.: 20% -98%.
Temperature: 00 to 500 C (Accessories may needed below 0 ¢J.)
¡@

¡@
