FULL SIGN

 Model¡GFS -165


Description

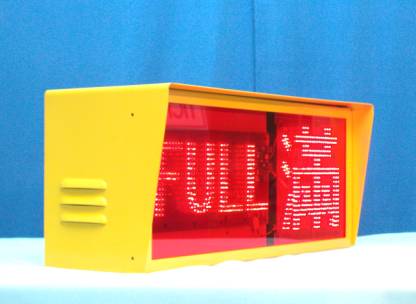

The FS-165 (FULL sign) series is designed for clear LED indication.

Housing

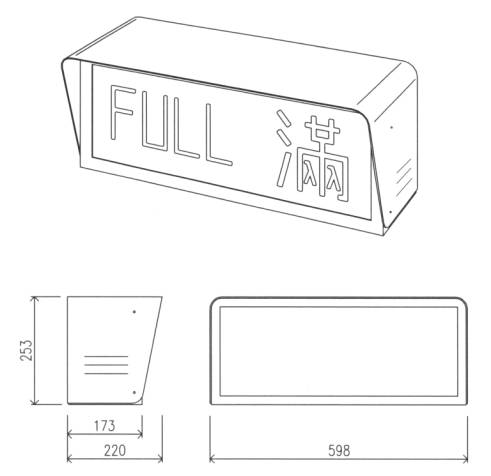

The 598 x 253 x 173 housing of mild steel sheet of 0.12 mm ¡V 2.0 mm thickness with galvanized black coating.

Technology

¡EElectronic super lite indicator.
¡EInterface linkage to CPU.

Features

¡ESuper-lite ¡§LED¡¨ display indicator.
¡EBlimming operation.
Options

¡ESpecial character or design upon request.
¡ESize of housing also available in Yellow coating.
Technical Data
Power consumption: 40W
 Weight: 10 Kg.
Voltage: AC 200V Frequency: 50-60 Hz
R.H.: 20% -98%.
Temperature: 00 to 500 C (Accessories may needed below 0 ¢J.)
